A&A Ultra ATA 133 IDE Card

For high speed, high capacity hard drives

• Ultra ATA 133 IDE Cards; From A&A Computing, Your Online PC Upgrade Shop

 PCI IDE Ultra ATA133 IDE Upgrade Card

For Desktop Computers & Tower Computers

The Ultra ATA133 IDE card allows computers which cannot see, or cannot use the full capacity of a modern high capacity Ultra ATA 100 or Ultra ATA 133 IDE hard disk drives to both see the drives & use their full capacity.

The Ultra ATA133 IDE card also allows desktop computers & tower computers to access data from the modern high capacity hard drives at full (Ultra ATA 133) speed.

The Ultra ATA133 IDE card which fits into a spare PCI slot. The IDE card then connects to the high capacity hard drive and allows it to transfer data at full speed (typically 100mhz or 133mhz, and the computer will see & be able to access the full capacity of the new hard drive or hard drives (up to 4 high capacity hard drives can be fitted to each Ultra ATA133 IDE card.

----------------------------------------------------------------------------------------------------------------------

 PCI IDE Ultra ATA133 IDE Card Specifications

Version: v2.0 Regulatory approval(s): FCC Class B (DoC) & CE Port type: IDE - Two IDE 40-pin connectors Slot type: 32-bit PCI OS support: Win XP 98SE/ME/NT4.0/2000/XP Compatibility: - Compliant with specification, revision 2.2 - Compliant with ATA/ATAPI-6 specifications - Compliant with UDMA6 ATA/133 specification - Supports PCI 33 MHz with 32-bit data - Full backward support for Ultra ATA/100/66/33 standards - On-board flash BIOS for future upgrade Data Transfer Modes supported: - Supports Ultra DMA (0-6) and Multi-word DMA mode (0-2), and PIO mode (0-4) - Achieves burst data transfer rates up to 133MB/sec - CRC error-checking provides data verification and achieves flawless data transfer Device Support: - Breaks the 137GB barrier! Supports various types of large capacity hard disk drives - Supports various brands of Ultra ATA 133/100/66/33 hard disk drives - Coexists with on-board IDE controller and allows you connect up to 4 IDE devices - Supports ATAPI devices including CD-ROM and CD-R/RW drives, and zip drives Advanced Features: - Auto-detects drive types and fine tunes to the best performance for each Ultra ATA hard disk drives - Support scatter/gather, multi-threaded, multi-tasking and automatic FIFO threshold selection - Provides two independent Ultra ATA channels (built-in 256-bytes FIFOS per channel) for faster data transfer - Full support ACPI (Advanced Configuration and Power Interface) for advanced system power management Warranty: 5 years

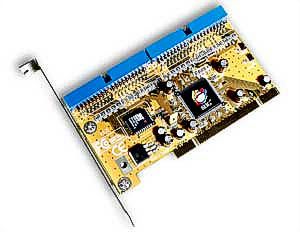

 Ultra ATA133 IDE PCI card for a tower computer or a desktop computer

Sorry; Withdrawn from sale

This IDE card now comes with FREE "How to build a PC" video CD, which demonstrates how to build a desktop or tower PC, & fit the hard drive, memory CD /DVD ROM drive etc.

     (We also accept payment by cheque)

This Ultra ATA133 IDE PCI card is supplied with full technical support

Please click on the links below to access the main computer storage upgrade page, the laptop computer hard drive upgrade page, the desktop computer hard drive upgrade & tower computer hard drive upgrade page.
